Arduino_自制库

有些程序很多地方使用都是一样，每次都整段程序放进去太麻烦了，也不便于阅读，对于这种可以封装成库文件来进行使用，和函数有点类似，都是简化程序

库文件可以简单分为四部分
![](/media/202201/image-74aa4fbbb3a74f77a68f3362480e44a2.png)

## 源程序
```
#include <Wire.h>

// MPU6050 Slave Device Address
const uint8_t MPU6050SlaveAddress = 0x68;

// Select SDA and SCL pins for I2C communication
const uint8_t scl = D6;
const uint8_t sda = D7;

// sensitivity scale factor respective to full scale setting provided in datasheet
const uint16_t AccelScaleFactor = 16384;
const uint16_t GyroScaleFactor = 131;

// MPU6050 few configuration register addresses
const uint8_t MPU6050_REGISTER_SMPLRT_DIV   =  0x19;
const uint8_t MPU6050_REGISTER_USER_CTRL    =  0x6A;
const uint8_t MPU6050_REGISTER_PWR_MGMT_1   =  0x6B;
const uint8_t MPU6050_REGISTER_PWR_MGMT_2   =  0x6C;
const uint8_t MPU6050_REGISTER_CONFIG       =  0x1A;
const uint8_t MPU6050_REGISTER_GYRO_CONFIG  =  0x1B;
const uint8_t MPU6050_REGISTER_ACCEL_CONFIG =  0x1C;
const uint8_t MPU6050_REGISTER_FIFO_EN      =  0x23;
const uint8_t MPU6050_REGISTER_INT_ENABLE   =  0x38;
const uint8_t MPU6050_REGISTER_ACCEL_XOUT_H =  0x3B;
const uint8_t MPU6050_REGISTER_SIGNAL_PATH_RESET  = 0x68;

int16_t AccelX, AccelY, AccelZ, Temperature, GyroX, GyroY, GyroZ;

void setup() {
  Serial.begin(9600);
  Wire.begin(sda, scl);
  MPU6050_Init();
}

void loop() {
  double Ax, Ay, Az, T, Gx, Gy, Gz;

  Read_RawValue(MPU6050SlaveAddress, MPU6050_REGISTER_ACCEL_XOUT_H);

  //divide each with their sensitivity scale factor
  Ax = (double)AccelX/AccelScaleFactor;
  Ay = (double)AccelY/AccelScaleFactor;
  Az = (double)AccelZ/AccelScaleFactor;
  T = (double)Temperature/340+36.53; //temperature formula
  Gx = (double)GyroX/GyroScaleFactor;
  Gy = (double)GyroY/GyroScaleFactor;
  Gz = (double)GyroZ/GyroScaleFactor;

Serial.print("Ax: "); Serial.print(Ax);
  Serial.print(" Ay: "); Serial.print(Ay);
  Serial.print(" Az: "); Serial.print(Az);
  Serial.print(" T: "); Serial.print(T);
  Serial.print(" Gx: "); Serial.print(Gx);
  Serial.print(" Gy: "); Serial.print(Gy);
  Serial.print(" Gz: "); Serial.println(Gz);

delay(100);
}

void I2C_Write(uint8_t deviceAddress, uint8_t regAddress, uint8_t data){
  Wire.beginTransmission(deviceAddress);
  Wire.write(regAddress);
  Wire.write(data);
  Wire.endTransmission();
}

// read all 14 register
void Read_RawValue(uint8_t deviceAddress, uint8_t regAddress){
  Wire.beginTransmission(deviceAddress);
  Wire.write(regAddress);
  Wire.endTransmission();
  Wire.requestFrom(deviceAddress, (uint8_t)14);
  AccelX = (((int16_t)Wire.read()<<8) | Wire.read());
  AccelY = (((int16_t)Wire.read()<<8) | Wire.read());
  AccelZ = (((int16_t)Wire.read()<<8) | Wire.read());
  Temperature = (((int16_t)Wire.read()<<8) | Wire.read());
  GyroX = (((int16_t)Wire.read()<<8) | Wire.read());
  GyroY = (((int16_t)Wire.read()<<8) | Wire.read());
  GyroZ = (((int16_t)Wire.read()<<8) | Wire.read());
}

//configure MPU6050
void MPU6050_Init(){
  delay(150);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_SMPLRT_DIV, 0x07);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_PWR_MGMT_1, 0x01);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_PWR_MGMT_2, 0x00);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_CONFIG, 0x00);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_GYRO_CONFIG, 0x00);//set +/-250 degree/second full scale
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_ACCEL_CONFIG, 0x00);// set +/- 2g full scale
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_FIFO_EN, 0x00);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_INT_ENABLE, 0x01);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_SIGNAL_PATH_RESET, 0x00);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_USER_CTRL, 0x00);
}
```

## h 文件
```
#ifndef Wire_H
#define Wire_H
#include <Wire.h>
#endif

#ifndef MPU6050_zwzw_H
#define MPU6050_zwzw_H

//定义库名称
class MPU6050_zwzw
{
public:
  //定义公共函数，外部可访问的
  //首个主函数不需要viod这些类名，并且名称要与定义的库名称一致
  MPU6050_zwzw(uint8_t sda,uint8_t scl);    //定义软件IIC
  void Init();    //初始化MPU6050
  void Run();     //实时更新数据，必须放在循环内！！！

//读取数据使用的变量，所以需要放在公共函数中
  double Ax, Ay, Az, T, Gx, Gy, Gz;   //可读取数据，角度X,角度Y,角度Z,温度,加速度X,加速度Y,加速度Z
private:
  //定义内部函数，仅限该库访问使用的
  void I2C_Write(uint8_t deviceAddress, uint8_t regAddress, uint8_t data);
  void RawValue(uint8_t deviceAddress, uint8_t regAddress);

//内部使用的变量，外部不需要调用，就放内部就行了

//MPU6050从设备地址
  const uint8_t MPU6050SlaveAddress = 0x68;

//数据表中提供的满量程设置的灵敏度比例系数
  const uint16_t AccelScaleFactor = 16384;
  const uint16_t GyroScaleFactor = 131;

  //MPU6050少数配置寄存器地址
  const uint8_t MPU6050_REGISTER_SMPLRT_DIV   =  0x19;
  const uint8_t MPU6050_REGISTER_USER_CTRL    =  0x6A;
  const uint8_t MPU6050_REGISTER_PWR_MGMT_1   =  0x6B;
  const uint8_t MPU6050_REGISTER_PWR_MGMT_2   =  0x6C;
  const uint8_t MPU6050_REGISTER_CONFIG       =  0x1A;
  const uint8_t MPU6050_REGISTER_GYRO_CONFIG  =  0x1B;
  const uint8_t MPU6050_REGISTER_ACCEL_CONFIG =  0x1C;
  const uint8_t MPU6050_REGISTER_FIFO_EN      =  0x23;
  const uint8_t MPU6050_REGISTER_INT_ENABLE   =  0x38;
  const uint8_t MPU6050_REGISTER_ACCEL_XOUT_H =  0x3B;
  const uint8_t MPU6050_REGISTER_SIGNAL_PATH_RESET  = 0x68;

  int16_t AccelX, AccelY, AccelZ, Temperature, GyroX, GyroY, GyroZ;
};

#endif
```

### 定义头文件
``
#ifndef Wire_H		# if no def，判断是否定义，如果没有执行下面的程序
#define Wire_H		# 定义一下，防止重复定义
#include <Wire.h>	# 这里放具体程序就行
#endif			# 结束
``

### 定义库函数
```
class [名称]
{
public:
	[公共函数和变量]
private:
	[私有函数和变量]
}
```
`public:` 第一个函数应该和 `class` 的名称一致，算是主函数

## cpp 文件
```
#include "MPU6050_zwzw.h"

MPU6050_zwzw::MPU6050_zwzw(uint8_t sda,uint8_t scl)
{
  Wire.begin(sda, scl);   //设置软件IIC
}
void MPU6050_zwzw::I2C_Write(uint8_t deviceAddress, uint8_t regAddress, uint8_t data){
  Wire.beginTransmission(deviceAddress);
  Wire.write(regAddress);
  Wire.write(data);
  Wire.endTransmission();
}

//读取所有14个寄存器
void MPU6050_zwzw::RawValue(uint8_t deviceAddress, uint8_t regAddress){
  Wire.beginTransmission(deviceAddress);
  Wire.write(regAddress);
  Wire.endTransmission();
  Wire.requestFrom(deviceAddress, (uint8_t)14);
  AccelX = (((int16_t)Wire.read()<<8) | Wire.read());
  AccelY = (((int16_t)Wire.read()<<8) | Wire.read());
  AccelZ = (((int16_t)Wire.read()<<8) | Wire.read());
  Temperature = (((int16_t)Wire.read()<<8) | Wire.read());
  GyroX = (((int16_t)Wire.read()<<8) | Wire.read());
  GyroY = (((int16_t)Wire.read()<<8) | Wire.read());
  GyroZ = (((int16_t)Wire.read()<<8) | Wire.read());
}

//配置MPU6050
void MPU6050_zwzw::Init(){
  delay(150);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_SMPLRT_DIV, 0x07);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_PWR_MGMT_1, 0x01);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_PWR_MGMT_2, 0x00);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_CONFIG, 0x00);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_GYRO_CONFIG, 0x00);//set +/-250 degree/second full scale
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_ACCEL_CONFIG, 0x00);// set +/- 2g full scale
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_FIFO_EN, 0x00);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_INT_ENABLE, 0x01);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_SIGNAL_PATH_RESET, 0x00);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_USER_CTRL, 0x00);
}

//保持更新MPU6050
void MPU6050_zwzw::Run(){
  RawValue(MPU6050SlaveAddress, MPU6050_REGISTER_ACCEL_XOUT_H);
  //用它们的敏感度比例因子除以每个
  Ax = (double)AccelX/AccelScaleFactor;
  Ay = (double)AccelY/AccelScaleFactor;
  Az = (double)AccelZ/AccelScaleFactor;
  T = (double)Temperature/340+36.53; //温度公式
  Gx = (double)GyroX/GyroScaleFactor;
  Gy = (double)GyroY/GyroScaleFactor;
  Gz = (double)GyroZ/GyroScaleFactor;
}
```

### 加载 .h 文件
```
#include "MPU6050_zwzw.h"
```

### 主函数
```
MPU6050_zwzw::MPU6050_zwzw(uint8_t sda,uint8_t scl)
{
  Wire.begin(sda, scl);   //设置软件IIC
}
```
设置主函数，这个函数`[库名称]::[库名称]`是 `public:` 中的第一个函数，应该与名称同名

### 其他函数
void MPU6050_zwzw::[名称](){}
这个名称就是在`.h`文件中定义的名称
里面包含所需运行的程序

## keywords 文件
这个文件主要是定义代码高亮的
格式：`keyword[tab]KEYWORD_TOKENTYPE`
* keyword 是要用来高亮显示的关键字类名、函数名和常量名等
* [tab] 为一个tab缩进（不要是空格！！！）
* KEYWORD_TOKENTYPE 的取值为 KEYWORD1, KEYWORD2, KEYWORD3, LITERAL1, LITERAL2
* 在Arduino IDE的关键字高亮中，会识别KEYWORD1为数据类型高亮，KEYWORD2为函数高亮，KEYWORD3为结构体高亮，LITERAL1为常量
```
MPU6050_zwzw	KEYWORD3
Init	KEYWORD2
Run	KEYWORD2
Ax	LITERAL2
Ay	LITERAL2
Az	LITERAL2
T	LITERAL2
Gx	LITERAL2
Gy	LITERAL2
Gz	LITERAL2
```

## 示例程序
\examples\[名称]\[名称].ino
![](/media/202201/image-dd06e31df56f4d4dac68e053a23cf26e.png)

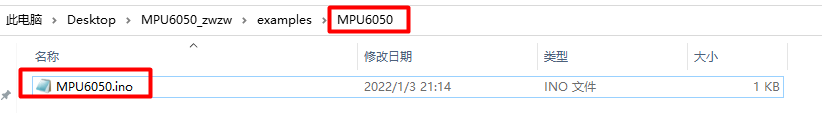

示例程序要符合 `ino` 文件特性，需要在和项目同名的 `项目文件夹` 下
项目文件夹中可以包含其他辅助文件
```
#include <MPU6050_zwzw.h>
MPU6050_zwzw MPU6050(4,5);

void setup() {
  MPU6050.Init();
  Serial.begin(9600);
}

void loop() {
  MPU6050.Run();

Serial.print("角度 Ax: "); Serial.print(MPU6050.Ax);
  Serial.print(" Ay: "); Serial.print(MPU6050.Ay);
  Serial.print(" Az: "); Serial.print(MPU6050.Az);
  Serial.print(" 温度 T: "); Serial.print(MPU6050.T);
  Serial.print(" 加速度 Gx: "); Serial.print(MPU6050.Gx);
  Serial.print(" Gy: "); Serial.print(MPU6050.Gy);
  Serial.print(" Gz: "); Serial.println(MPU6050.Gz);
  delay(100);

}
```
