Mixly-添加ESP32CAM支持

Mixly 中默认的 `Arduino ESP32` 编译环境是不支持 `ESP32CAM` 的
内存空间过小，Flash 4MB，partitions 也是默认

综上所述，我们自己添加一个开发板编译方式
### 修改 boards.txt(编译配置)
`...\arduino\portable\packages\esp32\hardware\esp32\1.0.6\boards.txt`
```
# 在 boards.txt 文件中追加以下内容
##############################################################
# 注意，这个名称要和 ...\blockly\arduino.js 中的名称一致
esp32cam.name=Arduino ESP32CAM

esp32cam.upload.tool=esptool_py
esp32cam.upload.maximum_size=1310720
esp32cam.upload.maximum_data_size=327680
esp32cam.upload.wait_for_upload_port=true

esp32cam.serial.disableDTR=true
esp32cam.serial.disableRTS=true

esp32cam.build.mcu=esp32
esp32cam.build.core=esp32
esp32cam.build.variant=esp32cam
esp32cam.build.board=ESP32_DEV

esp32cam.build.f_cpu=240000000L
esp32cam.build.flash_size=8MB
esp32cam.build.flash_freq=40m
esp32cam.build.flash_mode=dio
esp32cam.build.boot=dio
esp32cam.build.partitions=huge_app
esp32cam.build.defines=

esp32cam.menu.PSRAM.disabled=Disabled
esp32cam.menu.PSRAM.disabled.build.defines=
esp32cam.menu.PSRAM.enabled=Enabled
esp32cam.menu.PSRAM.enabled.build.defines=-DBOARD_HAS_PSRAM -mfix-esp32-psram-cache-issue

esp32cam.menu.PartitionScheme.huge_app=Huge APP (3MB No OTA/1MB SPIFFS)
esp32cam.menu.PartitionScheme.huge_app.build.partitions=huge_app
esp32cam.menu.PartitionScheme.huge_app.upload.maximum_size=3145728
esp32cam.menu.PartitionScheme.default=Default 4MB with spiffs (1.2MB APP/1.5MB SPIFFS)
esp32cam.menu.PartitionScheme.default.build.partitions=default
esp32cam.menu.PartitionScheme.defaultffat=Default 4MB with ffat (1.2MB APP/1.5MB FATFS)
esp32cam.menu.PartitionScheme.defaultffat.build.partitions=default_ffat
esp32cam.menu.PartitionScheme.minimal=Minimal (1.3MB APP/700KB SPIFFS)
esp32cam.menu.PartitionScheme.minimal.build.partitions=minimal
esp32cam.menu.PartitionScheme.no_ota=No OTA (2MB APP/2MB SPIFFS)
esp32cam.menu.PartitionScheme.no_ota.build.partitions=no_ota
esp32cam.menu.PartitionScheme.no_ota.upload.maximum_size=2097152
esp32cam.menu.PartitionScheme.noota_3g=No OTA (1MB APP/3MB SPIFFS)
esp32cam.menu.PartitionScheme.noota_3g.build.partitions=noota_3g
esp32cam.menu.PartitionScheme.noota_3g.upload.maximum_size=1048576
esp32cam.menu.PartitionScheme.noota_ffat=No OTA (2MB APP/2MB FATFS)
esp32cam.menu.PartitionScheme.noota_ffat.build.partitions=noota_ffat
esp32cam.menu.PartitionScheme.noota_ffat.upload.maximum_size=2097152
esp32cam.menu.PartitionScheme.noota_3gffat=No OTA (1MB APP/3MB FATFS)
esp32cam.menu.PartitionScheme.noota_3gffat.build.partitions=noota_3gffat
esp32cam.menu.PartitionScheme.noota_3gffat.upload.maximum_size=1048576
esp32cam.menu.PartitionScheme.min_spiffs=Minimal SPIFFS (1.9MB APP with OTA/190KB SPIFFS)
esp32cam.menu.PartitionScheme.min_spiffs.build.partitions=min_spiffs
esp32cam.menu.PartitionScheme.min_spiffs.upload.maximum_size=1966080
esp32cam.menu.PartitionScheme.fatflash=16M Flash (2MB APP/12.5MB FAT)
esp32cam.menu.PartitionScheme.fatflash.build.partitions=ffat

esp32cam.menu.CPUFreq.240=240MHz (WiFi/BT)
esp32cam.menu.CPUFreq.240.build.f_cpu=240000000L
esp32cam.menu.CPUFreq.160=160MHz (WiFi/BT)
esp32cam.menu.CPUFreq.160.build.f_cpu=160000000L
esp32cam.menu.CPUFreq.80=80MHz (WiFi/BT)
esp32cam.menu.CPUFreq.80.build.f_cpu=80000000L
esp32cam.menu.CPUFreq.40=40MHz (40MHz XTAL)
esp32cam.menu.CPUFreq.40.build.f_cpu=40000000L
esp32cam.menu.CPUFreq.26=26MHz (26MHz XTAL)
esp32cam.menu.CPUFreq.26.build.f_cpu=26000000L
esp32cam.menu.CPUFreq.20=20MHz (40MHz XTAL)
esp32cam.menu.CPUFreq.20.build.f_cpu=20000000L
esp32cam.menu.CPUFreq.13=13MHz (26MHz XTAL)
esp32cam.menu.CPUFreq.13.build.f_cpu=13000000L
esp32cam.menu.CPUFreq.10=10MHz (40MHz XTAL)
esp32cam.menu.CPUFreq.10.build.f_cpu=10000000L

esp32cam.menu.FlashMode.qio=QIO
esp32cam.menu.FlashMode.qio.build.flash_mode=dio
esp32cam.menu.FlashMode.qio.build.boot=qio
esp32cam.menu.FlashMode.dio=DIO
esp32cam.menu.FlashMode.dio.build.flash_mode=dio
esp32cam.menu.FlashMode.dio.build.boot=dio
esp32cam.menu.FlashMode.qout=QOUT
esp32cam.menu.FlashMode.qout.build.flash_mode=dout
esp32cam.menu.FlashMode.qout.build.boot=qout
esp32cam.menu.FlashMode.dout=DOUT
esp32cam.menu.FlashMode.dout.build.flash_mode=dout
esp32cam.menu.FlashMode.dout.build.boot=dout

esp32cam.menu.FlashFreq.80=80MHz
esp32cam.menu.FlashFreq.80.build.flash_freq=80m
esp32cam.menu.FlashFreq.40=40MHz
esp32cam.menu.FlashFreq.40.build.flash_freq=40m

esp32cam.menu.FlashSize.8M=8MB (64Mb)
esp32cam.menu.FlashSize.8M.build.flash_size=8MB
esp32cam.menu.FlashSize.4M=4MB (32Mb)
esp32cam.menu.FlashSize.4M.build.flash_size=4MB
esp32cam.menu.FlashSize.2M=2MB (16Mb)
esp32cam.menu.FlashSize.2M.build.flash_size=2MB
esp32cam.menu.FlashSize.2M.build.partitions=minimal
esp32cam.menu.FlashSize.16M=16MB (128Mb)
esp32cam.menu.FlashSize.16M.build.flash_size=16MB
esp32cam.menu.FlashSize.16M.build.partitions=ffat

esp32cam.menu.UploadSpeed.921600=921600
esp32cam.menu.UploadSpeed.921600.upload.speed=921600
esp32cam.menu.UploadSpeed.115200=115200
esp32cam.menu.UploadSpeed.115200.upload.speed=115200
esp32cam.menu.UploadSpeed.256000.windows=256000
esp32cam.menu.UploadSpeed.256000.upload.speed=256000
esp32cam.menu.UploadSpeed.230400.windows.upload.speed=256000
esp32cam.menu.UploadSpeed.230400=230400
esp32cam.menu.UploadSpeed.230400.upload.speed=230400
esp32cam.menu.UploadSpeed.460800.linux=460800
esp32cam.menu.UploadSpeed.460800.macosx=460800
esp32cam.menu.UploadSpeed.460800.upload.speed=460800
esp32cam.menu.UploadSpeed.512000.windows=512000
esp32cam.menu.UploadSpeed.512000.upload.speed=512000

esp32cam.menu.DebugLevel.none=None
esp32cam.menu.DebugLevel.none.build.code_debug=0
esp32cam.menu.DebugLevel.error=Error
esp32cam.menu.DebugLevel.error.build.code_debug=1
esp32cam.menu.DebugLevel.warn=Warn
esp32cam.menu.DebugLevel.warn.build.code_debug=2
esp32cam.menu.DebugLevel.info=Info
esp32cam.menu.DebugLevel.info.build.code_debug=3
esp32cam.menu.DebugLevel.debug=Debug
esp32cam.menu.DebugLevel.debug.build.code_debug=4
esp32cam.menu.DebugLevel.verbose=Verbose
esp32cam.menu.DebugLevel.verbose.build.code_debug=5
##############################################################
```
### 添加 esp32cam/pins_arduino.h(引脚定义)

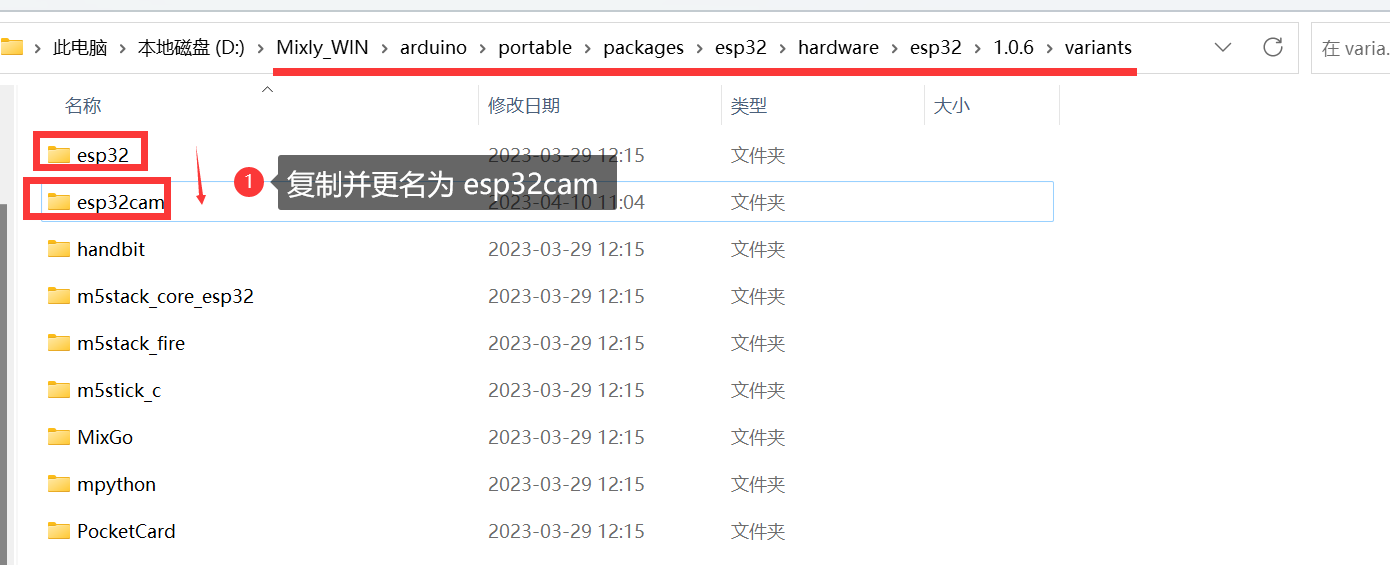

在 `...\arduino\portable\packages\esp32\hardware\esp32\1.0.6\variants` 下，把 `esp32` 文件夹复制一份并命名为 `esp32cam`
![](/media/202304/2023-04-10_112108_0966810.6707572636453477.png)

### 设定 ESP32CAM 模块栏共用 ESP32
`...\blockly\arduino.js`
```js
# 复制 arduino_esp32 的粘贴并修改两处名称为 arduino_esp32cam，其它保持默认即可
arduino_esp32cam: {
	description: "arduino_esp32cam",
	digital: [["0", "0"], ["2", "2"], ["4", "4"], ["5", "5"], ["12", "12"], ["13", "13"], ["14", "14"], ["15", "15"], ["16", "16"], ["17", "17"], ["18", "18"], ["19", "19"], ["20", "20"], ["21", "21"], ["22", "22"], ["23", "23"], ["25", "25"], ["26", "26"], ["27", "27"], ["32", "32"], ["33", "33"], ["34", "34"], ["35", "35"], ["36", "36"], ["39", "39"]],
	digitalWrite: [["0", "0"], ["2", "2"], ["4", "4"], ["5", "5"], ["12", "12"], ["13", "13"], ["14", "14"], ["15", "15"], ["16", "16"], ["17", "17"], ["18", "18"], ["19", "19"], ["20", "20"], ["21", "21"], ["22", "22"], ["23", "23"], ["25", "25"], ["26", "26"], ["27", "27"], ["32", "32"], ["33", "33"]],
	interrupt: [["0", "0"], ["4", "4"], ["5", "5"], ["12", "12"], ["13", "13"], ["14", "14"], ["15", "15"], ["16", "16"], ["17", "17"], ["18", "18"], ["19", "19"], ["20", "20"], ["21", "21"], ["22", "22"], ["23", "23"], ["25", "25"], ["26", "26"], ["27", "27"], ["32", "32"], ["33", "33"], ["34", "34"], ["35", "35"], ["36", "36"], ["39", "39"]],
	pwm: [["0", "0"], ["2", "2"], ["4", "4"], ["5", "5"], ["12", "12"], ["13", "13"], ["14", "14"], ["15", "15"],["17", "17"], ["18", "18"], ["19", "19"], ["20", "20"], ["21", "21"], ["22", "22"], ["23", "23"], ["25", "25"], ["26", "26"], ["27", "27"], ["32", "32"], ["33", "33"]],
	analog: [["0", "0"], ["2", "2"], ["4", "4"],  ["12", "12"], ["13", "13"], ["14", "14"], ["15", "15"],["25", "25"], ["26", "26"], ["27", "27"], ["32", "32"], ["33", "33"], ["34", "34"], ["35", "35"], ["36", "36"], ["39", "39"]],
	tx: [["0", "0"], ["2", "2"], ["4", "4"], ["5", "5"], ["12", "12"], ["13", "13"], ["14", "14"], ["15", "15"], ["16", "16"], ["17", "17"], ["18", "18"], ["19", "19"], ["20", "20"], ["21", "21"], ["22", "22"], ["23", "23"], ["25", "25"], ["26", "26"], ["27", "27"], ["31", "31"]],
	dac: [["25", "25"], ["26", "26"]],
	SDA:[["21","21"]],
	SCL:[["22","22"]],
	MOSI:[["23","23"]],
	MISO:[["19","19"]],
	SCK:[["18","18"]],
	TONE_NOTE:[["NOTE_C","NOTE_C"],["NOTE_Cs","NOTE_Cs"],["NOTE_D","NOTE_D"],["NOTE_Eb","NOTE_Eb"],["NOTE_E","NOTE_E"],["NOTE_F","NOTE_F"],["NOTE_Fs","NOTE_Fs"],["NOTE_G","NOTE_G"],["NOTE_Gs","NOTE_Gs"],["NOTE_A","NOTE_A"],["NOTE_Bb","NOTE_Bb"],["NOTE_B","NOTE_B"],["NOTE_MAX","NOTE_MAX"]],
	OCTAVE:[["0", "0"],["1", "1"],["2", "2"],["3", "3"],["4", "4"],["5", "5"],["6", "6"],["7", "7"]],
	CHANNEL:[["0", "0"],["1", "1"],["2", "2"],["3", "3"],["4", "4"],["5", "5"],["6", "6"],["7", "7"],["8", "8"],["9", "9"],["10", "10"],["11", "11"],["12", "12"],["13", "13"],["14", "14"],["15", "15"]],
	PWM_RESOLUTION:[["8", "8"],["9", "9"],["10", "10"],["11", "11"],["12", "12"],["13", "13"],["14", "14"],["15", "15"],["16", "16"],["17", "17"],["18", "18"],["19", "19"],["20", "20"]],
	touch: [["0", "0"], ["2", "2"], ["4", "4"], ["12", "12"], ["13", "13"], ["14", "14"], ["15", "15"], ["27", "27"], ["32", "32"], ["33", "33"]],
	serial_HardwareSelect: [["Serial", "Serial"], ["Serial1", "Serial1"], ["Serial2", "Serial2"]],
	serial_select: [["Serial", "Serial"], ["SoftwareSerial", "mySerial"], ["SoftwareSerial1", "mySerial1"], ["SoftwareSerial2", "mySerial2"], ["SoftwareSerial3", "mySerial3"]],
	serial : 9600
},

//esp32 这一栏中也要最加上(只列出部分,追加项2,4,格式抄常规ESP32的)
profile['Arduino ESP32']=profile['Arduino ESP32CAM']=profile["arduino_esp32"]=profile["arduino_esp32cam"];
```

自此重新打开 Mixly 就有该开发板了
> 如果想要禁用其他开发板，在 `boards.txt` 中删除对应编译方式
